Bulkhead-protected HTTP calls in Spring

A Spring service caps concurrent warehouse calls with a semaphore bulkhead and degrades gracefully when it saturates or fails.

Explained by highlit
Spring Intermediate bulkhead resilience fallback http-client fault-tolerance
1@Service
2public class InventoryService {
3
4 private final RestClient warehouseClient;
5
6 public InventoryService(RestClient.Builder builder) {
7 this.warehouseClient = builder
8 .baseUrl("https://warehouse.internal/api")
9 .build();
10 }
11
12 @Bulkhead(name = "warehouse", type = Bulkhead.Type.SEMAPHORE, fallbackMethod = "cachedStock")
13 public StockLevel currentStock(String sku) {
14 return warehouseClient.get()
15 .uri("/stock/{sku}", sku)
16 .retrieve()
17 .body(StockLevel.class);
18 }
19
20 private StockLevel cachedStock(String sku, BulkheadFullException ex) {
21 log.warn("Warehouse bulkhead saturated for sku={}, serving degraded stock", sku);
22 return StockLevel.unknown(sku);
23 }
24
25 private StockLevel cachedStock(String sku, Throwable ex) {
26 log.error("Warehouse lookup failed for sku={}", sku, ex);
27 return StockLevel.unknown(sku);
28 }
29
30 private static final Logger log = LoggerFactory.getLogger(InventoryService.class);
31}
01 / 01
STEP 01

Walkthrough

Space play ←→ step click any line
Three takeaways
  1. 1A semaphore bulkhead bounds concurrent calls to a dependency so one slow service can't exhaust your threads.
  2. 2Fallback methods let you return a degraded-but-valid response instead of propagating failures to callers.
  3. 3Matching fallbacks by exception type lets you distinguish saturation from genuine downstream errors.

Related explainers

java
@Configuration
public class DataSourceLoggingConfig {

    @Bean

Wrapping a Spring DataSource for query tracing

proxy pattern observability data source
Intermediate 7 steps
java
@RestController
@RequestMapping("/api/products")
@Validated
public class ProductSearchController {

Validating query params in a Spring controller

validation pagination rest-api
Intermediate 8 steps
java
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Constraint(validatedBy = PasswordsMatchValidator.class)
public @interface PasswordsMatch {

Custom cross-field validation in Spring

bean-validation custom-constraints cross-field-validation
Intermediate 8 steps
java
public final class LogRedactor {

    private static final Pattern SECRET = Pattern.compile(
        "(?i)(password|token|api[_-]?key|secret|authorization)\\s*[=:]\\s*\\S+");

Streaming log redaction in Java

regex streaming-io try-with-resources
Intermediate 9 steps
java
@Component
public class HeaderMergeFilter {

    private static final String PER_REQUEST_HEADERS = HeaderMergeFilter.class.getName() + ".headers";

Merging default and per-request headers in Spring

webclient filters http-headers
Intermediate 8 steps
java
import java.util.HashSet;
import java.util.Set;

public final class CollectionDiff<T> {

Diffing two collections with set operations

set-operations immutability generics
Intermediate 8 steps

Share this explainer

Here's the card — post it anywhere.

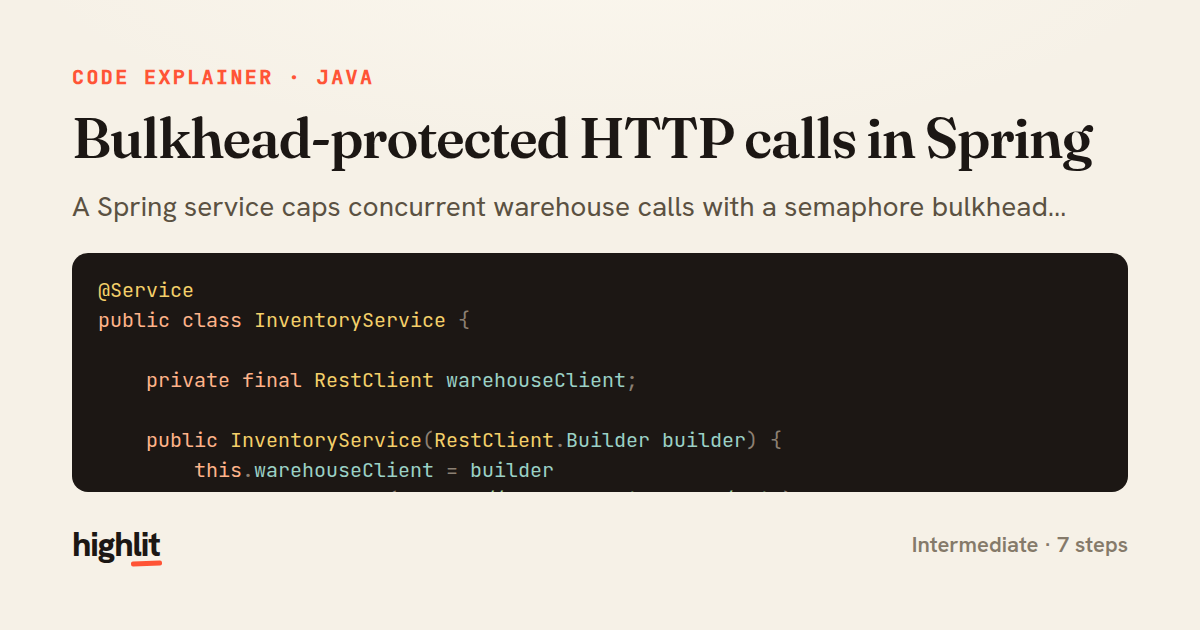

Bulkhead-protected HTTP calls in Spring — share card
