How undo/redo history works in Ruby

An editor's undo stack is just an array of snapshots and a cursor that slides back and forth over them.

Explained by highlit
Intermediate undo-redo state-management immutability data-structures bounded-buffer
1class EditorHistory
2 MAX_DEPTH = 100
3
4 def initialize(initial = "")
5 @snapshots = [initial.freeze]
6 @cursor = 0
7 end
8
9 def current
10 @snapshots[@cursor]
11 end
12
13 def commit(text)
14 text = text.dup.freeze
15 return current if text == current
16
17 @snapshots = @snapshots[0..@cursor]
18 @snapshots << text
19
20 if @snapshots.size > MAX_DEPTH
21 @snapshots.shift(@snapshots.size - MAX_DEPTH)
22 end
23
24 @cursor = @snapshots.size - 1
25 current
26 end
27
28 def undo
29 return current if @cursor.zero?
30
31 @cursor -= 1
32 current
33 end
34
35 def redo
36 return current if @cursor >= @snapshots.size - 1
37
38 @cursor += 1
39 current
40 end
41
42 def can_undo?
43 @cursor.positive?
44 end
45
46 def can_redo?
47 @cursor < @snapshots.size - 1
48 end
49end
01 / 01
STEP 01

Walkthrough

Space play ←→ step click any line
Three takeaways
  1. 1A cursor index over an append-only snapshot array turns undo/redo into simple pointer arithmetic.
  2. 2Committing after an undo must truncate the forward history, because that redo branch is now invalid.
  3. 3Freezing stored snapshots and capping the array bounds memory and prevents mutation from corrupting past states.

Related explainers

ruby
require "shellwords"
require "open3"

module Backup

Building safe shell commands in Ruby

shell-out subprocess command-injection
Intermediate 7 steps
ruby
class UserAgentParser
  BROWSERS = [
    [/Edg\/([\d.]+)/, "Edge"],
    [/OPR\/([\d.]+)/, "Opera"],

Parsing user-agent strings in Ruby

regex pattern-matching lookup-tables
Intermediate 8 steps
ruby
class LogAggregator
  BUCKET_FORMAT = "%Y-%m-%dT%H:%M"

  def initialize(entries)

Bucketing log entries by the minute in Ruby

aggregation hashing enumerable
Intermediate 5 steps
typescript
import { Injectable, effect, signal, computed } from '@angular/core';

interface Preferences {
  theme: 'light' | 'dark';

A signal-based preferences store in Angular

signals state-management persistence
Intermediate 7 steps
ruby
class WeeklySignupsReport
  DEFAULT_WEEKS = 12

  def initialize(weeks: DEFAULT_WEEKS, source: User.all)

Building a weekly signups report in Rails

service object aggregation group by
Intermediate 7 steps
typescript
import { useEffect, useState } from "react";

interface Section {
  id: string;

Building a scroll-spy hook in React

custom-hooks intersectionobserver dom-observation
Intermediate 8 steps

Share this explainer

Here's the card — post it anywhere.

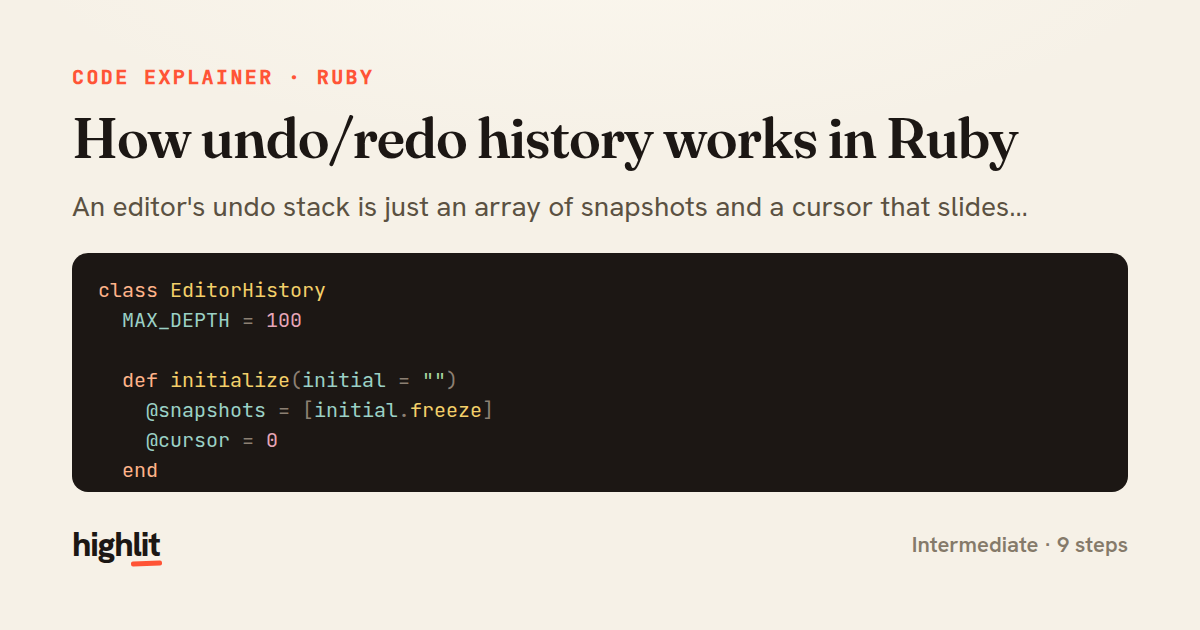

How undo/redo history works in Ruby — share card
