java 16 lines · 5 steps

Killing N+1 queries with @EntityGraph in Spring

How Spring Data JPA repository methods eagerly fetch related entities in a single query using entity graphs.

Explained by highlit
Spring Intermediate orm fetching n+1-problem query-optimization jpa
1@Repository
2public interface OrderRepository extends JpaRepository<Order, Long> {
3
4 @EntityGraph(attributePaths = {"customer", "lineItems", "lineItems.product"})
5 @Query("select o from Order o where o.status = :status")
6 List<Order> findByStatusWithDetails(@Param("status") OrderStatus status);
7
8 @EntityGraph(attributePaths = {"customer", "lineItems"})
9 Optional<Order> findWithDetailsById(Long id);
10
11 @EntityGraph(attributePaths = {"lineItems", "lineItems.product"})
12 Page<Order> findByCustomerId(Long customerId, Pageable pageable);
13
14 @EntityGraph(value = "Order.withShipments", type = EntityGraph.EntityGraphType.LOAD)
15 List<Order> findByPlacedAtBetween(Instant from, Instant to);
16}
01 / 01
STEP 01

Walkthrough

Space play ←→ step click any line
Three takeaways
  1. 1@EntityGraph declares which associations to fetch eagerly per query, sidestepping the N+1 problem without changing entity mappings.
  2. 2attributePaths accepts dotted paths like lineItems.product to fetch nested associations several levels deep.
  3. 3Named entity graphs and LOAD versus FETCH types let you reuse and fine-tune eager-loading strategy across methods.

Related explainers

java
public class SlidingLogRateLimiter {

    private final int maxRequests;
    private final long windowMillis;

How a sliding-log rate limiter works

rate-limiting concurrency sliding-window
Advanced 8 steps
java
public final class Slugifier {

    private static final Pattern NON_LATIN = Pattern.compile("[^\\w-]");
    private static final Pattern WHITESPACE = Pattern.compile("[\\s]+");

Building a URL slugifier in Java

regex unicode-normalization string-processing
Intermediate 8 steps
java
@Repository
public interface OrderRepository extends JpaRepository<Order, Long> {

    @Query("""

Keyset pagination with Spring Data JPA

pagination cursor jpa
Advanced 8 steps
java
public record FixedWidthField(String name, int start, int end) {

    public String extract(String line) {
        int from = Math.min(start, line.length());

Parsing fixed-width text in Java

records parsing streams
Intermediate 7 steps
java
@RestController
@RequestMapping("/api/quotes")
public class QuoteStreamController {


Streaming market quotes with Spring WebFlux

reactive-streams backpressure server-sent-events
Advanced 9 steps
java
@Controller
public class BookController {

    private final BookService bookService;

Solving GraphQL N+1 with batch mapping in Spring

graphql n+1-problem batching
Intermediate 8 steps

Share this explainer

Here's the card — post it anywhere.

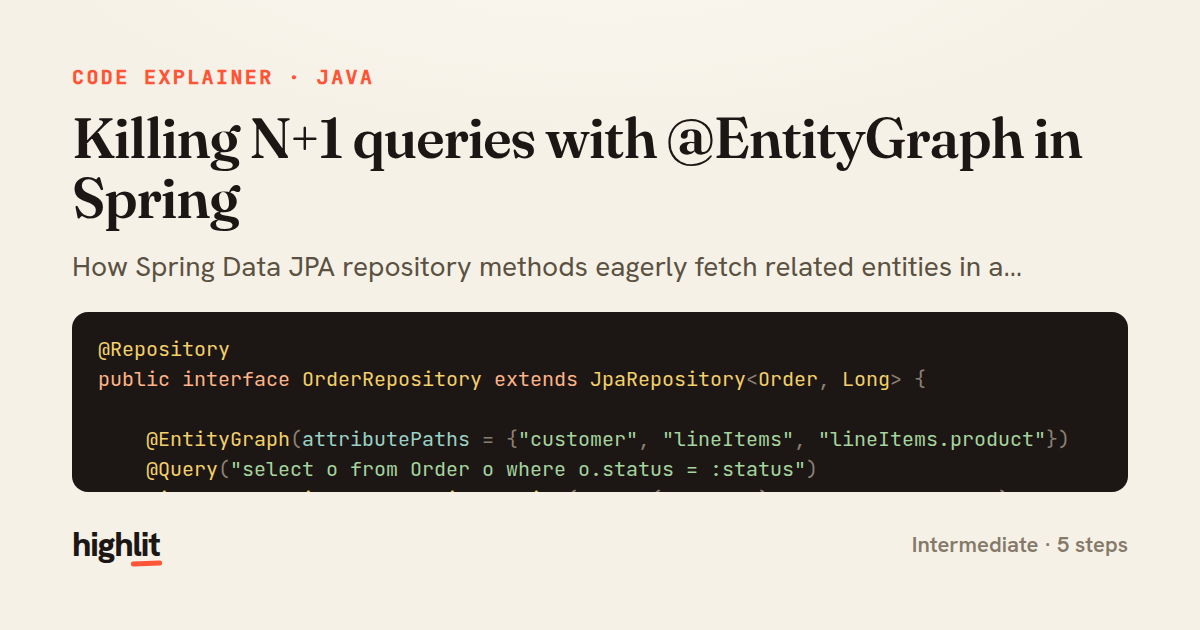

Killing N+1 queries with @EntityGraph in Spring — share card
