ruby 38 lines · 5 steps

Parsing fixed-width records in Ruby

A data-driven parser turns fixed-width text lines into typed hashes using a declarative field table.

Explained by highlit
Intermediate parsing data-driven-design type-coercion enumerable modules
1module FixedWidthParser
2 FIELDS = [
3 { name: :record_type, range: 0...2 },
4 { name: :account_id, range: 2...12, type: :integer },
5 { name: :last_name, range: 12...42, type: :string },
6 { name: :first_name, range: 42...62, type: :string },
7 { name: :balance, range: 62...74, type: :cents },
8 { name: :opened_on, range: 74...82, type: :date },
9 { name: :active, range: 82...83, type: :flag }
10 ].freeze
11
12 module_function
13
14 def parse(io)
15 io.each_line.filter_map do |line|
16 next if line.strip.empty?
17 parse_line(line.chomp)
18 end
19 end
20
21 def parse_line(line)
22 FIELDS.each_with_object({}) do |field, record|
23 raw = line[field[:range]].to_s
24 record[field[:name]] = cast(raw, field[:type])
25 end
26 end
27
28 def cast(raw, type)
29 case type
30 when :integer then Integer(raw.strip, 10)
31 when :string then raw.strip
32 when :cents then Integer(raw.strip, 10) / 100.0
33 when :date then Date.strptime(raw.strip, "%Y%m%d")
34 when :flag then raw.strip == "Y"
35 else raw
36 end
37 end
38end
01 / 01
STEP 01

Walkthrough

Space play ←→ step click any line
Three takeaways
  1. 1Describing structure as data lets one small engine handle every field without branching per column.
  2. 2Ruby ranges over strings slice fixed-width columns cleanly, and filter_map drops blanks in one pass.
  3. 3Centralizing type coercion in a case statement keeps parsing logic in one place and easy to extend.

Related explainers

ruby
class ToastBroadcaster
  include ActionView::RecordIdentifier

  def self.broadcast_to(user, message:, type: :notice)

How Turbo Stream toasts broadcast in Rails

turbo-streams service-object real-time
Intermediate 6 steps
ruby
class TemplateInterpolator
  PLACEHOLDER = /\{\{\s*([\w.]+)\s*\}\}/

  def initialize(strict: false)

Interpolating templates with dotted keys in Ruby

regex string-interpolation hash-traversal
Intermediate 6 steps
ruby
class KeyTransformer
  def self.camelize(data)
    new.camelize(data)
  end

Recursively camelizing nested Ruby data

recursion data-transformation pattern-matching
Intermediate 7 steps
ruby
module Paginatable
  extend ActiveSupport::Concern

  private

A reusable pagination concern in Rails

pagination concerns http-headers
Intermediate 8 steps
rust
use std::net::Ipv4Addr;
use std::str::FromStr;

#[derive(Debug, Clone, Copy)]

Parsing and matching IPv4 CIDR ranges in Rust

bitwise-operations parsing error-handling
Intermediate 8 steps
ruby
class Api::MessagesController < ApiController
  before_action :authenticate_api_key!

  rate_limit to: 100,

Layered API rate limiting in Rails

rate-limiting api-authentication throttling
Intermediate 9 steps

Share this explainer

Here's the card — post it anywhere.

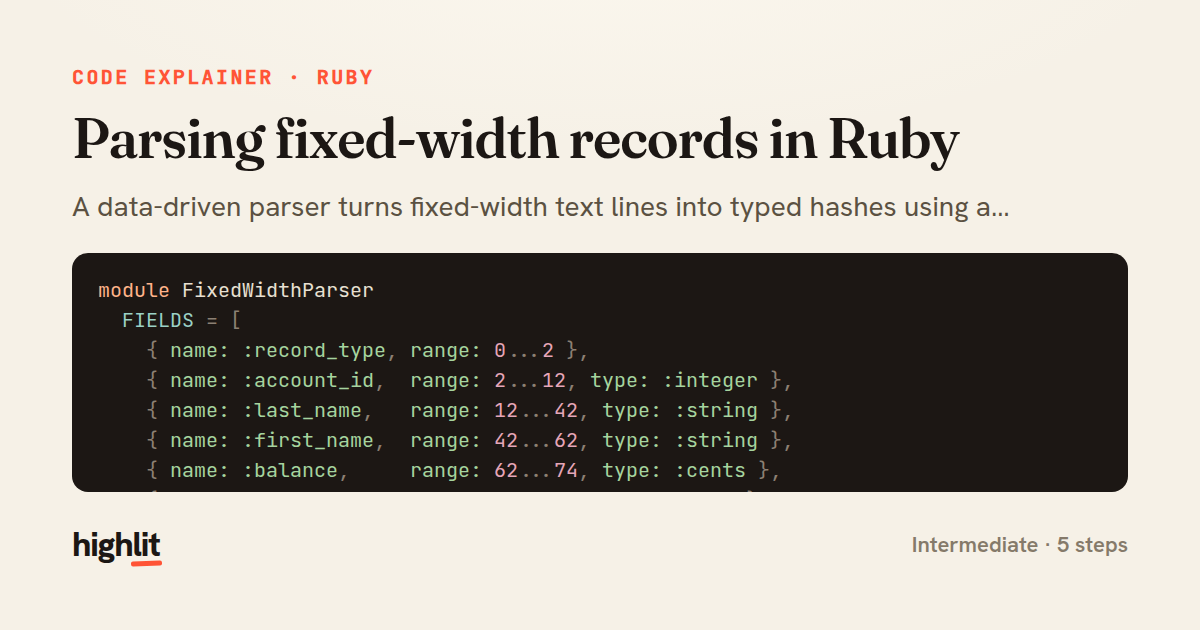

Parsing fixed-width records in Ruby — share card
