rust 58 lines · 8 steps

Building a nested REST API router in Axum

How Axum extractors and nested Routers compose a versioned user API around shared state.

Explained by highlit
Axum Intermediate routing extractors shared-state serialization rest-api
1use axum::{
2 extract::{Path, State},
3 routing::{get, post},
4 Json, Router,
5};
6use serde::{Deserialize, Serialize};
7use std::sync::Arc;
8
9#[derive(Clone)]
10struct AppState {
11 repo: Arc<UserRepository>,
12}
13
14#[derive(Serialize)]
15struct User {
16 id: u64,
17 name: String,
18}
19
20#[derive(Deserialize)]
21struct CreateUser {
22 name: String,
23}
24
25async fn list_users(State(state): State<AppState>) -> Json<Vec<User>> {
26 Json(state.repo.all().await)
27}
28
29async fn get_user(
30 State(state): State<AppState>,
31 Path(id): Path<u64>,
32) -> Json<Option<User>> {
33 Json(state.repo.find(id).await)
34}
35
36async fn create_user(
37 State(state): State<AppState>,
38 Json(payload): Json<CreateUser>,
39) -> Json<User> {
40 Json(state.repo.insert(payload.name).await)
41}
42
43fn users_routes() -> Router<AppState> {
44 Router::new()
45 .route("/", get(list_users).post(create_user))
46 .route("/{id}", get(get_user))
47}
48
49fn v1_routes() -> Router<AppState> {
50 Router::new().nest("/users", users_routes())
51}
52
53pub fn api_router(state: AppState) -> Router {
54 Router::new()
55 .nest("/api/v1", v1_routes())
56 .route("/health", get(|| async { "ok" }))
57 .with_state(state)
58}
01 / 01
STEP 01

Walkthrough

Space play ←→ step click any line
Three takeaways
  1. 1Handler arguments are extractors: Axum pulls state, path params, and JSON bodies straight from the function signature.
  2. 2Nesting Routers lets you compose route trees by feature and version while keeping each handler small.
  3. 3with_state injects a cloneable AppState so every handler can reach shared dependencies like a repository.

Related explainers

python
from fastapi import APIRouter, BackgroundTasks, Depends, HTTPException, status
from pydantic import BaseModel, EmailStr
from sqlalchemy.orm import Session


Building a signup endpoint in FastAPI

dependency-injection request-validation background-tasks
Intermediate 8 steps
rust
use axum::{extract::{Path, State}, http::StatusCode, Json};
use dashmap::DashMap;
use serde::Serialize;
use std::sync::Arc;

Request coalescing in an Axum handler

caching concurrency request-coalescing
Advanced 8 steps
go
package handlers

import (
	"net/http"

Serving embedded static meta files in Gin

embedding static assets http caching
Intermediate 6 steps
rust
use std::net::Ipv4Addr;
use std::str::FromStr;

#[derive(Debug, Clone, Copy)]

Parsing and matching IPv4 CIDR ranges in Rust

bitwise-operations parsing error-handling
Intermediate 8 steps
typescript
type CsvColumn<T> = {
  header: string;
  value: (row: T) => string | number | boolean | null | undefined;
};

Building a type-safe CSV writer in TypeScript

generics serialization escaping
Intermediate 7 steps
java
@RestController
@RequestMapping("/api/products")
public class ProductSearchController {


Binding collection query params in Spring

rest-api query-parameters dependency-injection
Intermediate 6 steps

Share this explainer

Here's the card — post it anywhere.

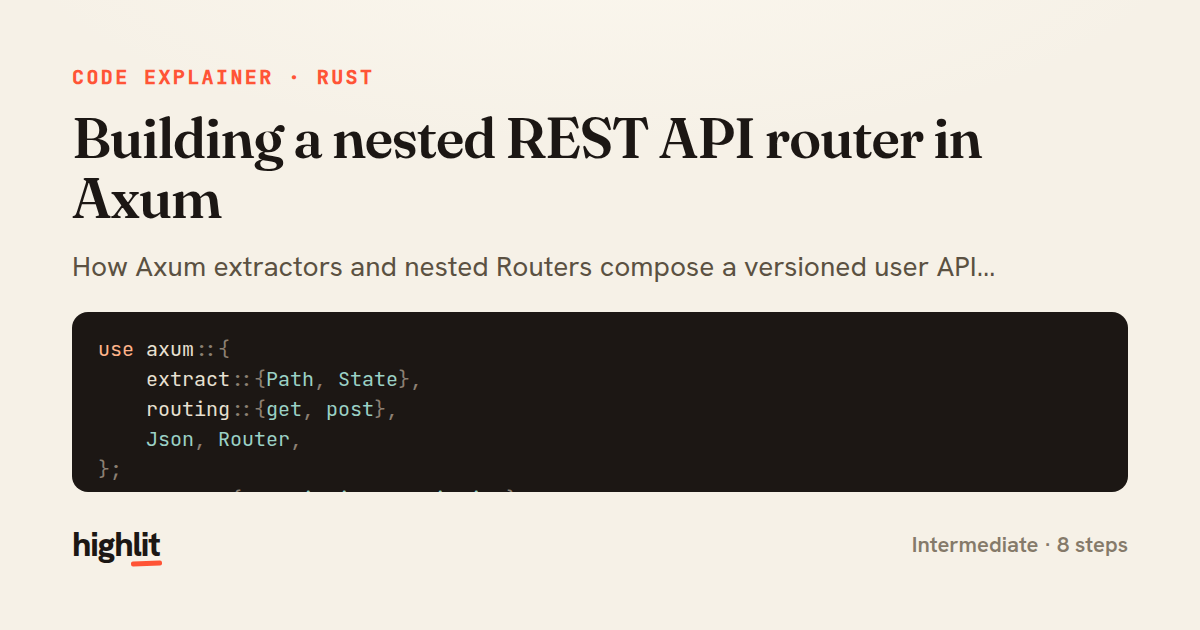

Building a nested REST API router in Axum — share card
