HTTP range requests for video streaming in Axum

An Axum handler serves partial video content so browsers can seek and stream without downloading the whole file.

Explained by highlit
Axum Advanced http-range-requests streaming async-io video partial-content
1use axum::{
2 body::Body,
3 extract::Path,
4 http::{header, HeaderMap, HeaderValue, StatusCode},
5 response::{IntoResponse, Response},
6};
7use tokio::io::{AsyncReadExt, AsyncSeekExt, SeekFrom};
8use tokio_util::io::ReaderStream;
9
10pub async fn stream_video(Path(name): Path<String>, headers: HeaderMap) -> Response {
11 let path = std::path::Path::new("media").join(&name);
12 let mut file = match tokio::fs::File::open(&path).await {
13 Ok(f) => f,
14 Err(_) => return StatusCode::NOT_FOUND.into_response(),
15 };
16 let total = match file.metadata().await {
17 Ok(m) => m.len(),
18 Err(_) => return StatusCode::INTERNAL_SERVER_ERROR.into_response(),
19 };
20
21 let range = headers.get(header::RANGE).and_then(|v| v.to_str().ok());
22 let (start, end) = match parse_range(range, total) {
23 Some(r) => r,
24 None if range.is_some() => {
25 return Response::builder()
26 .status(StatusCode::RANGE_NOT_SATISFIABLE)
27 .header(header::CONTENT_RANGE, format!("bytes */{total}"))
28 .body(Body::empty())
29 .unwrap();
30 }
31 None => (0, total - 1),
32 };
33
34 let len = end - start + 1;
35 if file.seek(SeekFrom::Start(start)).await.is_err() {
36 return StatusCode::INTERNAL_SERVER_ERROR.into_response();
37 }
38 let stream = ReaderStream::new(file.take(len));
39
40 let status = if range.is_some() { StatusCode::PARTIAL_CONTENT } else { StatusCode::OK };
41 let mut builder = Response::builder()
42 .status(status)
43 .header(header::CONTENT_TYPE, "video/mp4")
44 .header(header::ACCEPT_RANGES, "bytes")
45 .header(header::CONTENT_LENGTH, len);
46 if range.is_some() {
47 builder = builder.header(
48 header::CONTENT_RANGE,
49 HeaderValue::from_str(&format!("bytes {start}-{end}/{total}")).unwrap(),
50 );
51 }
52 builder.body(Body::from_stream(stream)).unwrap()
53}
54
55fn parse_range(header: Option<&str>, total: u64) -> Option<(u64, u64)> {
56 let spec = header?.strip_prefix("bytes=")?;
57 let (s, e) = spec.split_once('-')?;
58 let start: u64 = if s.is_empty() { 0 } else { s.parse().ok()? };
59 let end: u64 = if e.is_empty() { total - 1 } else { e.parse().ok()?.min(total - 1) };
60 (start <= end && start < total).then_some((start, end))
61}
01 / 01
STEP 01

Walkthrough

Space play ←→ step click any line
Three takeaways
  1. 1Range requests let clients ask for byte slices, which is what makes video seeking work over HTTP.
  2. 2Streaming a bounded reader avoids loading an entire file into memory before responding.
  3. 3A malformed range must answer 416 with a Content-Range header rather than silently serving the whole file.

Related explainers

rust
use axum::{extract::{Path, State}, http::StatusCode, Json};
use dashmap::DashMap;
use serde::Serialize;
use std::sync::Arc;

Request coalescing in an Axum handler

caching concurrency request-coalescing
Advanced 8 steps
rust
use std::net::Ipv4Addr;
use std::str::FromStr;

#[derive(Debug, Clone, Copy)]

Parsing and matching IPv4 CIDR ranges in Rust

bitwise-operations parsing error-handling
Intermediate 8 steps
rust
use std::sync::OnceLock;

static CRC_TABLE: OnceLock<[u32; 256]> = OnceLock::new();


Table-driven CRC32 with lazy init in Rust

checksums lazy-initialization lookup-tables
Intermediate 8 steps
go
func UploadChunk(c *gin.Context) {
	uploadID := c.Param("uploadID")
	if !validUploadID.MatchString(uploadID) {
		c.JSON(http.StatusBadRequest, gin.H{"error": "invalid upload id"})

Resumable chunked uploads in Gin

file-upload content-range streaming
Advanced 9 steps
rust
use std::sync::mpsc;
use std::thread;
use std::time::Duration;


Running work with a timeout in Rust

concurrency channels timeout
Intermediate 7 steps
java
@GetMapping("/files/{id}")
public ResponseEntity<StreamingResponseBody> download(
        @PathVariable String id,
        @RequestHeader(value = HttpHeaders.RANGE, required = false) String rangeHeader) throws IOException {

HTTP range requests in Spring

http-range streaming file-io
Advanced 10 steps

Share this explainer

Here's the card — post it anywhere.

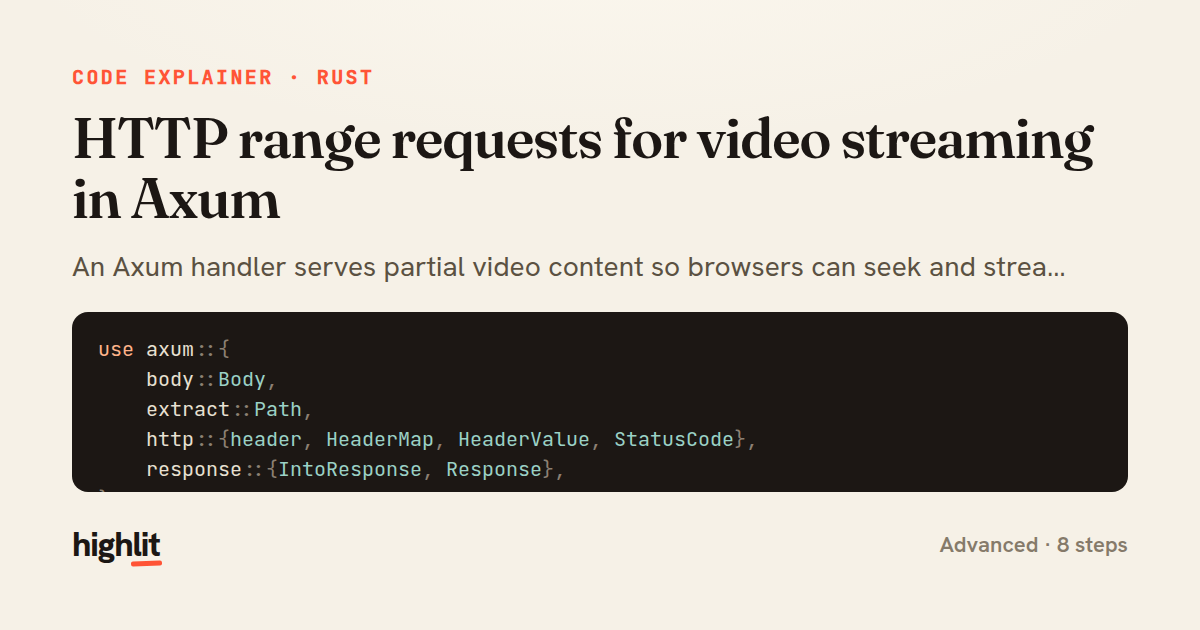

HTTP range requests for video streaming in Axum — share card
