rust 41 lines · 7 steps

Turning Axum timeouts into 504 JSON

An Axum route caps a slow report handler with a Tower timeout layer and rewrites the timeout into a clean gateway-timeout response.

Explained by highlit
Axum Intermediate middleware timeouts error-handling json-responses tower
1use std::time::Duration;
2
3use axum::{
4 body::Body,
5 http::{Request, Response, StatusCode},
6 response::IntoResponse,
7 routing::get,
8 Json, Router,
9};
10use serde_json::json;
11use tower::ServiceBuilder;
12use tower_http::timeout::TimeoutLayer;
13
14pub fn report_routes() -> Router {
15 Router::new()
16 .route("/reports/heavy", get(generate_heavy_report))
17 .layer(
18 ServiceBuilder::new()
19 .layer(TimeoutLayer::new(Duration::from_secs(5)))
20 .map_response(map_timeout_to_504),
21 )
22}
23
24fn map_timeout_to_504(response: Response<Body>) -> Response<Body> {
25 if response.status() == StatusCode::REQUEST_TIMEOUT {
26 return (
27 StatusCode::GATEWAY_TIMEOUT,
28 Json(json!({
29 "error": "report_generation_timed_out",
30 "message": "The report took too long to generate. Try narrowing the date range."
31 })),
32 )
33 .into_response();
34 }
35 response
36}
37
38async fn generate_heavy_report(_req: Request<Body>) -> impl IntoResponse {
39 let rows = crate::reporting::aggregate_yearly_totals().await;
40 Json(json!({ "rows": rows }))
41}
01 / 01
STEP 01

Walkthrough

Space play ←→ step click any line
Three takeaways
  1. 1Tower layers wrap handlers uniformly, so cross-cutting concerns like timeouts live outside the business logic.
  2. 2Mapping a raw framework status into a domain-specific JSON error gives clients a clearer, actionable response.
  3. 3Composing behavior with ServiceBuilder keeps ordering explicit: apply the timeout, then reshape whatever it produces.

Related explainers

rust
use serde::Deserialize;

#[derive(Debug, Deserialize)]
#[serde(untagged)]

Parsing flexible JSON shapes with serde

deserialization enums json
Intermediate 6 steps
ruby
require "shellwords"
require "open3"

module Backup

Building safe shell commands in Ruby

shell-out subprocess command-injection
Intermediate 7 steps
rust
use std::cmp::{Ordering, Reverse};
use std::collections::BinaryHeap;
use std::fs::File;
use std::io::{self, BufRead, BufReader, BufWriter, Lines, Write};

K-way merge of sorted logs in Rust

binary-heap k-way-merge streaming-io
Intermediate 8 steps
python
import time
import uuid

from django.utils.deprecation import MiddlewareMixin

Attaching per-request context in Django

middleware request lifecycle multi-tenancy
Intermediate 7 steps
rust
use axum::{
    extract::{Path, State},
    response::sse::{Event, KeepAlive, Sse},
};

Streaming import progress with SSE in Axum

server-sent-events streams watch-channel
Advanced 7 steps
rust
use std::f64::consts::PI;

#[derive(Debug, Clone, Copy)]
pub struct LatLng {

Building geographic bounding boxes in Rust

geospatial value-types option
Intermediate 7 steps

Share this explainer

Here's the card — post it anywhere.

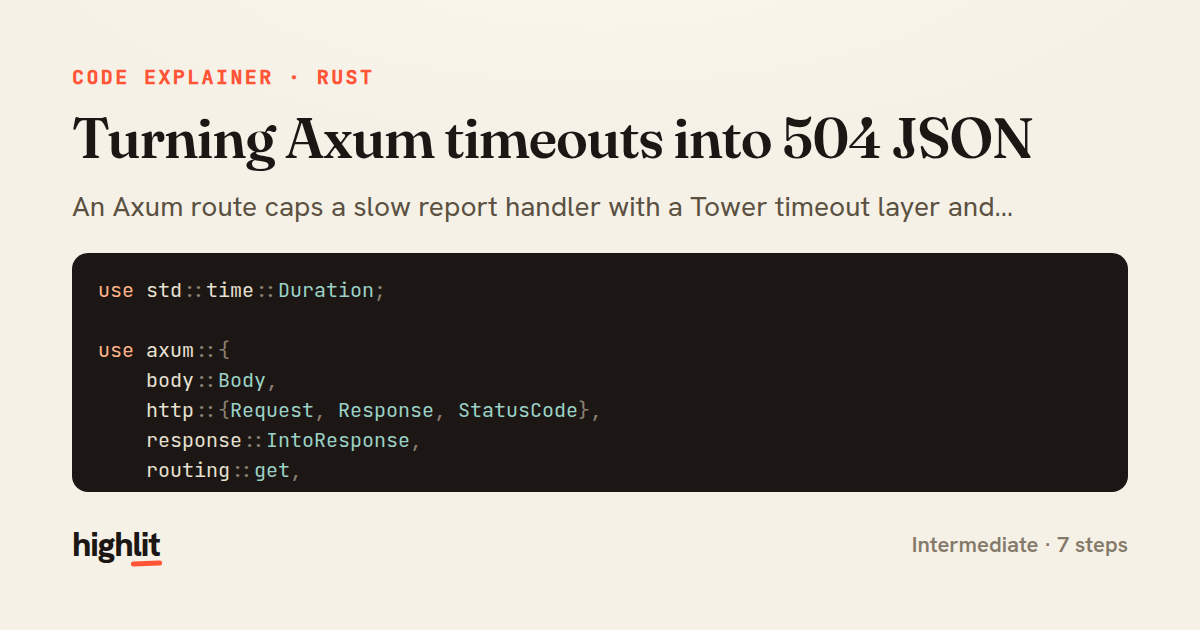

Turning Axum timeouts into 504 JSON — share card
