Building an API gateway proxy in Express

An Express router forwards /api traffic to a backend service while injecting auth headers, logging, and graceful error handling.

Explained by highlit
Express Intermediate reverse-proxy middleware api-gateway error-handling request-forwarding
1const express = require('express');
2const { createProxyMiddleware, fixRequestBody } = require('http-proxy-middleware');
3
4const router = express.Router();
5
6const apiProxy = createProxyMiddleware({
7 target: process.env.BACKEND_URL || 'http://localhost:4000',
8 changeOrigin: true,
9 xfwd: true,
10 proxyTimeout: 10000,
11 timeout: 10000,
12 pathRewrite: { '^/api': '' },
13 on: {
14 proxyReq: (proxyReq, req) => {
15 if (req.user) {
16 proxyReq.setHeader('x-user-id', req.user.id);
17 proxyReq.setHeader('x-user-roles', req.user.roles.join(','));
18 }
19 proxyReq.setHeader('x-request-id', req.id);
20 fixRequestBody(proxyReq, req);
21 },
22 proxyRes: (proxyRes, req) => {
23 proxyRes.headers['x-proxied-by'] = 'gateway';
24 req.log.info({ status: proxyRes.statusCode, path: req.path }, 'proxied response');
25 },
26 error: (err, req, res) => {
27 req.log.error({ err }, 'upstream proxy error');
28 if (!res.headersSent) {
29 res.status(502).json({ error: 'bad_gateway', message: 'Upstream service unavailable' });
30 }
31 },
32 },
33});
34
35router.use('/api', apiProxy);
36
37module.exports = router;
01 / 01
STEP 01

Walkthrough

Space play ←→ step click any line
Three takeaways
  1. 1A reverse proxy lets a gateway centralize auth, logging, and timeouts before requests reach backend services.
  2. 2Hooking into proxyReq lets you enrich upstream requests with identity and tracing headers the client never sees.
  3. 3Checking headersSent before responding to an error avoids crashing on a partially-sent proxied response.

Related explainers

rust
use axum::{
    extract::{FromRequestParts, Query},
    http::{request::Parts, StatusCode},
};

Building a custom Axum extractor for query filters

extractors query-parsing enums
Intermediate 8 steps
go
package middleware

import (
	"net/http"

Per-IP write rate limiting in Gin

rate-limiting middleware concurrency
Intermediate 8 steps
python
import asyncio
from dataclasses import dataclass

import aiohttp

Bounded-concurrency HTTP fetching with asyncio

async concurrency semaphore
Intermediate 8 steps
javascript
import { useCallback, useRef, useState } from 'react';

export function ColorPicker({ initialColor = '#3b82f6', onCommit }) {
  const [committed, setCommitted] = useState(initialColor);

A validated color picker in React

uncontrolled-inputs refs validation
Intermediate 7 steps
go
package middleware

import (
	"net/http"

A content-type guard middleware in Gin

middleware closures http
Intermediate 7 steps
javascript
import { useEffect, useRef } from 'react';

export function useRefetchOnFocus(refetch, { staleTime = 30_000 } = {}) {
  const lastFetchedAt = useRef(Date.now());

A React hook that refetches on tab focus

custom-hooks refs event-listeners
Intermediate 6 steps

Share this explainer

Here's the card — post it anywhere.

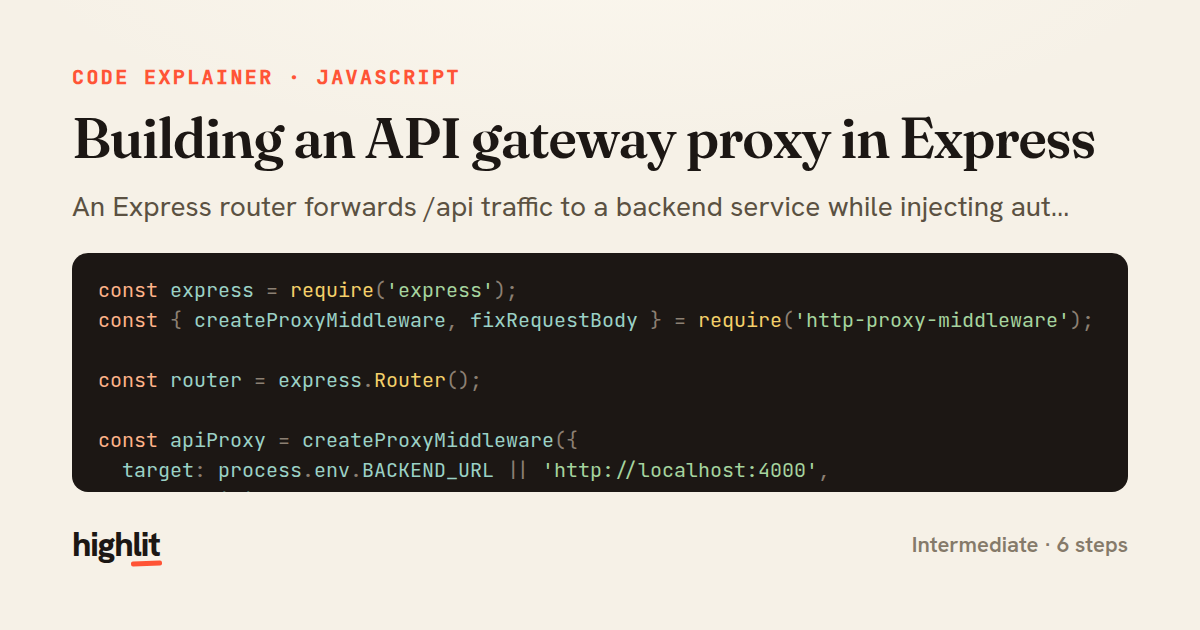

Building an API gateway proxy in Express — share card
